| Photo | Model | Arm | Degree of freedom (axes) |
Motion Range | Maximum reach(mm) |
Repeatability (mm) |
Cleanliness | Hand specification |
Controller | Software | Manual | ||||
| θ1 axis (rotation・JT2 (°) |
Z axis (up-down・JT3) (㎜) |
θ2 axis (rotation・JT4) (°) |
H1 axis (rotation・JT6) (°) |
H2 axis (rotation・JT7) (°) |
|||||||||||
 |

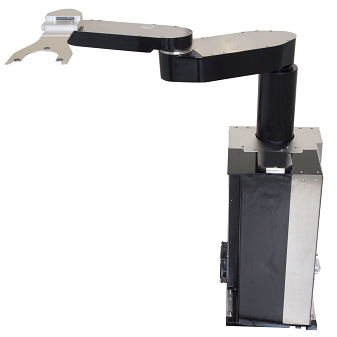

NTS10 | Single | 4 | 340 | 470 | 340 | 340 | - | 1066 | ±0.1 (Wafer Center) | ISO Class 1 | - | D60 ISO Class 1 |
Standard software for oparation KMTerm KSUtility Lite |
Operation manual Communication command manual Introduction procedure for integrated package software (K-Fast) |
|
NTS20 | Double | 5 | 340 | 470 | 340 | 340 | 340 | 1066 | ±0.1 (Wafer Center) | ISO Class 1 | - | D60 ISO Class 1 |
Standard software for oparation KMTerm KSUtility Lite |
Operation manual Communication command manual Introduction procedure for integrated package software (K-Fast) |
 |

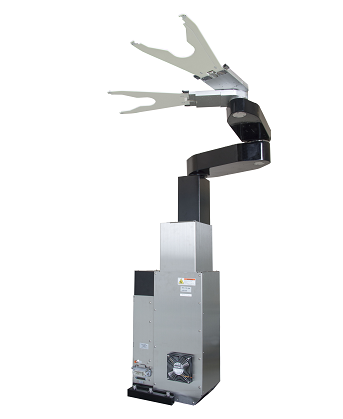

TTS10 | single | 4 | 340 | 470 | 340 | 340 | - | 1066 | ±0.1 (Wafer Center) | ISO Class 1 | - | D60 ISO Class 1 |
Standard software for oparation KMTerm KSUtility Lite |
Operation manual Communication command manual Introduction procedure for integrated package software (K-Fast) |
|
TTS20 | Double | 5 | 340 | 470 | 340 | 340 | 340 | 1066 | ±0.1 (Wafer Center) | ISO Class 1 | - | D60 ISO Class 1 |
Standard software for oparation KMTerm KSUtility Lite |
Operation manual Communication command manual Introduction procedure for integrated package software (K-Fast) |
KAWASAKI
无尘型机器人
设备
川崎提供了业界领先的全系列半导体和电子搬运机器人。这些机器人是专为在无尘室中应用而制造的，包括ISO 1级。速度、准确度以及伸展范围使这些机器人适合搬运精密的半导体晶圆、LCD面板、有机EL，以及太阳能电池板。
加入询价
川崎提供了业界领先的全系列半导体和电子搬运机器人。这些机器人是专为在无尘室中应用而制造的，包括ISO 1级。速度、准确度以及伸展范围使这些机器人适合搬运精密的半导体晶圆、LCD面板、有机EL，以及太阳能电池板。
